ELECTROMAGNETIC COMPATIBILITY
 WARNING: Do not place objects or mount equipment on or near the airbag cover, on the side of the front or rear seatbacks, or in areas that may come into contact with a deploying airbag. Failure to follow these instructions may increase the risk of personal injury in the event of a crash. WARNING: Do not fasten antenna cables to vehicle wiring, fuel pipes and brake pipes. WARNING: Keep antenna and power cables at least 4 in (10 cm) from any electronic modules and airbags. |
Note: We test and certify your vehicle to meet electromagnetic compatibility legislation. It is your responsibility to make sure that any equipment an authorized dealer installs on your vehicle complies with applicable local legislation and other requirements. Installation of some aftermarket electronic devices could degrade the performance of vehicle functions, which use radio frequency signals such as broadcast radio receiver, tire pressure monitoring system, push-button start, Bluetooth® connectivity or satellite navigation.
Note: Any radio frequency transmitter equipment in your vehicle (such as cellular telephones and amateur radio transmitters) must keep to the parameters in the following illustrations and table. We do not provide any other special provisions or conditions for installations or use.

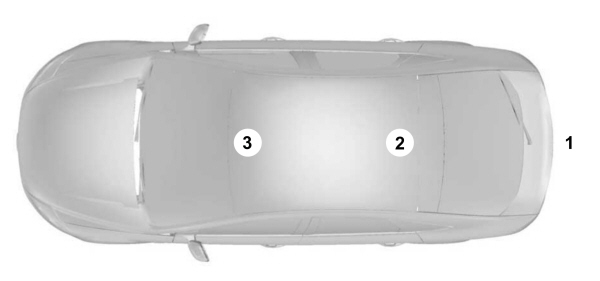

Car

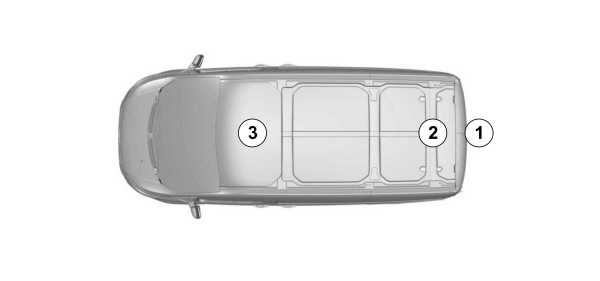

Van

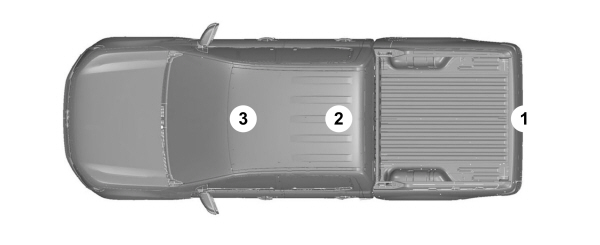

Truck
| Frequency Band MHz | Maximum Output Power Watt (Peak RMS) | Antenna Positions |
|---|---|---|
| 1-30 | 50 | 1 |
| 50-54 | 50 | 2, 3 |
| 68-88 | 50 | 2, 3 |
| 142-176 | 50 | 2, 3 |
| 380-512 | 50 | 2, 3 |
| 806-870 | 10 | 2, 3 |
Note: After the installation of radio frequency transmitters, check for disturbances from and to all electrical equipment in your vehicle, both in the standby and transmit modes.
Check all electrical equipment:
- With the ignition ON.
- With the vehicle running.
- During a road test at various speeds.
Check that electromagnetic fields generated inside your vehicle cabin by the transmitter installed do not exceed applicable human exposure requirements.
